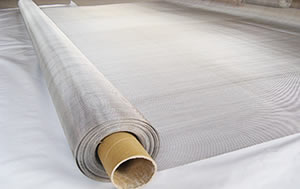

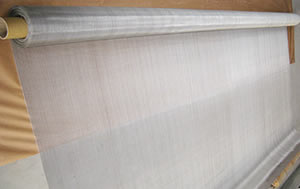

Stainless Steel Wire Mesh For Extra Width For Filtering

Product classification: extra width stainless steel wire mesh, extra wire diameter stainless steel wire mesh for filtering(width 1.2-8m)
Material: stainless steel wire 304,304L,316,316L,2520,2080 and so on
Width: 1.2-8m(according to customer’s requirement)
Weaving: plain weave, twill weave and dutch weave (we can make special type according to customer’s requirement)
Specification: mesh 2-300
Type: roll, square hole, round (we can process it to filtering material )
Length: 30m (special length according to customer’s requirement)
Packing: waterproof paper inside, wooden case outside
Characteristic: acid resistant, alkali-resisting, heat-resistant, tensile, wear-resisting
Application: widely used in sieving and filtering on acid and alkali condition, petroleum industry for Net mud, chemical fiber industry for sieving, electroplating industry for acid cleaning

Our factory accept customer’s material for processing and OEM, special specification, weave type, width and mesh can make according to customer’s requirement.

Stainless steel wire mesh for extra width for filtering (mesh 2-300,width 1.2-8m)

Detailed specification:

Specification parameter table
mesh	Wire diameter		aperture		Opening area	Weight(lbs)/100 square foot
mesh	inch	mm	Inch	mm	Opening area	Weight(lbs)/100 square foot
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
