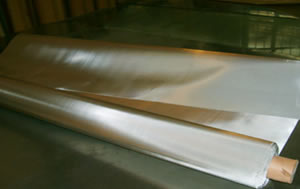

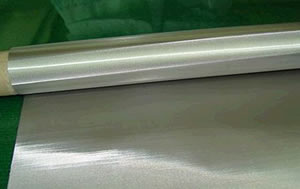

Stainless steel wire mesh for filtering Stainless steel wire mesh for extra width for filtering Minigroove stainless steel wire meshStainless steel crimped mesh Wire mesh deep processing productMinigroove Stainless Steel Wire Mesh
Product classification: dutch weave stainless steel wire mesh, contrast mat net and so on
Material: stainless steel wire 304,304L,316,316L,2520,2080 and so on
Width: 1-3m(according to customer’s requirement)
Specification: mesh12*64-500*3500
Weave type:
Type: roll, square hole, round (we can process it to filtering material )
length: 30m(special length according to customer’s requirement)
Packing: waterproof paper inside, wooden case or weave bag outside
Characteristic: acid resistant, alkali-resisting, heat-resistant, tensile, wear-resisting
Application: widely used in sieving and filtering on acid and alkali condition, petroleum industry for Net mud, chemical fiber industry for sieving, electroplating industry for acid cleaning
Our factory accept customer’s material for processing and OEM, special specification, weave type, width and mesh can make according to customer’s requirement.
Minigroove stainless steel wire mesh detailed specification:

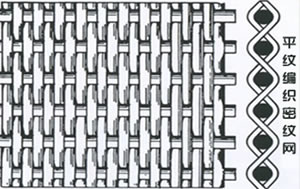

Plain weave specification parameter table |
|||||
Warp*weft |
Wire diameter |
Aperture |
Effective cross-section rate |
Unit area weight |
Thickness |
12×64 |
0.56×0.4 |
211 |
16.0 |
3.89 |
1.36 |
12×86 |
0.45×0.315 |
20.9 |
2.93 |
1.08 |
|
12.5×76 |
0.45×0.355 |
192 |
15.9 |
3.26 |
1.16 |
14×100 |
0.40×0.28 |
182 |
20.3 |
2.62 |
0.96 |
14×110 |
0.355×0.25 |
177 |
22.2 |
2.28 |
0.855 |
14×76 |
0.45×0.355 |
173 |
14.3 |
3.33 |
1.16 |
16×100 |
0.4×0.28 |
160 |
17.7 |
2.7 |
0.96 |
17×120 |
0.355×0.224 |
155 |
22.4 |
2.19 |
0.803 |
16×120 |
0.28×0.224 |
145 |
19.2 |
1.97 |
0.728 |
20×140 |
0.315×0.20 |
133 |
21.5 |
0.715 |
|
20×170 |
0.25×0.16 |
130 |
28.9 |
1.56 |
0.57 |
20×110 |
0.355×0.25 |
126 |
15.3 |
2.47 |
0.855 |
22×120 |
0.315×0.224 |
115 |
15.5 |
2.20 |
0.763 |
25×140 |
0.28×0.2 |
100 |
15.2 |
1.96 |
0.68 |
24×110 |
0.355×0.25 |
97 |
11.3 |
2.60 |
0.855 |
28×150 |
0.28×0.18 |
92 |
15.9 |
1.87 |
0.64 |
30×150 |
0.25×0.18 |
82 |
13.5 |
1.79 |
0.61 |
30×140 |
0.315×0.20 |
77 |
11.4 |
2.21 |
0.715 |
35×190 |
0.224×0.14 |
74 |
16.8 |
1.47 |
0.504 |
35×170 |
0.224×0.16 |
69 |
12.8 |
1.62 |
0.544 |
40×200 |
0.18×0.135 |
63 |
15.4 |
1.24 |
0.43 |
45×250 |
0.16×0.11 |
56 |
15.2 |
1.11 |
0.384 |
50×300 |
0.16×0.09 |
55 |
20.0 |
0.98 |
0.34 |
60×500 |
0.14×0.055 |
51 |
34.1 |
0.70 |
0.252 |
50×270 |
0.14×0.10 |
50 |
15.2 |
0.98 |
0.34 |
70×930 |
0.10×0.03 |
30 |
36.2 |
0.39 |
0.16 |
65×390 |
0.125×0.071 |
42 |
19.1 |
0.78 |
0.267 |
60×300 |
0.14×0.09 |
41 |
14.1 |
0.96 |
0.32 |
80×700 |
0.125×0.04 |
40 |
38.1 |
0.60 |
0.205 |
60×270 |
0.14×0.1 |
39 |
11.2 |
1.03 |
0.34 |
77×560 |
0.14×0.05 |
38 |
27.5 |
0.74 |
0.24 |
80×600 |
0.1×0.045 |
37 |
29.8 |
0.53 |
0.19 |
70×390 |
0.112×0.071 |
16.3 |
0.74 |
0.254 |
|
65×750 |
0.10×0.036 |
36 |
37.1 |
0.43 |
0.172 |
70×340 |
0.125×0.08 |
35 |
13.2 |
0.86 |
0.285 |
80×430 |
0.125×0.063 |
32 |
16.6 |
0.77 |
0.251 |
100×1200 |
0.063×0.023 |
23 |
37.6 |
0.27 |
0.109 |
118×750 |
0.063×0.036 |
21.5 |
0.38 |
0.135 |
|

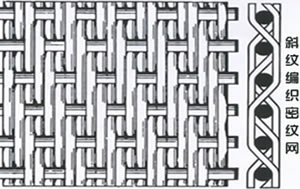

twill weave specification parameter table |
|||||
Warp*weft |
Wire diameter |
Aperture |
Effective cross-section rate |
Unit area weight |
Thickness |
20×270 |
0.25×0.2 |
119 |
17.6 |
3.14 |
0.65 |
20×200 |
0.355×0.28 |
118 |
12.1 |
4.58 |
0.915 |
24×300 |
0.28×0.18 |
110 |
19.6 |
3.01 |
0.64 |
20×150 |
0.45×0.355 |
101 |
7.5 |
6.02 |
1.16 |
30×340 |
0.28×0.16 |
89 |
17.9 |
2.84 |
0.60 |
30×270 |
0.28×0.20 |
77 |
11.2 |
3.41 |
0.68 |
40×540 |
0.18×0.10 |
70 |
23.5 |
1.73 |
0.38 |
40×430 |
0.18×0.125 |
63 |
15.4 |
2.09 |
0.43 |
50×600 |
0.125×0.09 |
51 |
17.2 |
1.47 |
0.305 |
50×500 |
0.14×0.11 |
47 |
12 |
1.83 |
0.364 |
65×600 |
0.14×0.09 |
36 |
1.59 |
0.32 |
|
70×600 |
0.14×0.09 |
31 |
10.1 |
1.61 |
|
78×760 |
0.112×0.071 |
13.5 |
1.25 |
0.254 |
|
78×680 |
0.112×0.08 |
29 |
10.3 |
1.37 |
0.272 |
80×680 |
0.112×0.08 |
28 |
9.8 |
1.38 |
|
90×850 |
0.10×0.063 |
26 |
12.7 |
1.12 |
0.226 |
90×760 |
0.10×0.071 |
24 |
9.6 |
1.23 |
0.242 |
100×850 |
0.10×0.063 |
22 |
10 |
1.14 |
0.226 |
130×1500 |
0.063×0.036 |
21 |
18.6 |
0.64 |
0.135 |
100×760 |
0.10×0.071 |
20 |
7.4 |
1.25 |
0.242 |
130×1200 |
0.071×0.045 |
18 |
12 |
0.80 |
0.161 |
130×1100 |
0.071×0.05 |
17 |
9.4 |
0.87 |
0.171 |
150×1400 |
0.063×0.04 |
15 |
11.4 |
0.71 |
0.143 |
160×1500 |
0.063×0.036 |
12.4 |
0.67 |
0.135 |
|
165×1500 |
0.063×0.036 |
14 |
11.4 |
||
174×1700 |
0.063×0.032 |
13 |
12.9 |
0.62 |
0.127 |
165×1400 |
0.063×0.04 |
8.8 |
0.73 |
0.143 |
|
174×1400 |
0.063×0.04 |
11 |
7.4 |
0.74 |
|
203×1600 |
0.05×0.032 |
10 |
9.3 |
0.58 |
0.114 |
216×1800 |
0.045×0.03 |
9.4 |
0.53 |
0.105 |
|
203×1500 |
0.056×0.036 |
9 |
6.2 |
0.67 |
0.128 |
250×1900 |
0.04×0.028 |
8 |
7.8 |
0.51 |
0.096 |
250×1600 |
0.05×0.032 |
3.8 |
0.63 |
0.114 |
|
285×2100 |
0.036×0.025 |
7 |
7.2 |
0.44 |
0.086 |
300×2100 |
0.036×0.025 |
6 |
6.0 |
||
317×2100 |
0.036×0.025 |
5 |
4.7 |
||
325×2300 |
0.036×0.024 |
4 |
4.2 |
||
363×2300 |
0.032×0.022 |
4.5 |
0.40 |
0.076 |
|
400×2700 |
0.028×0.02 |
4.7 |
0.36 |
0.068 |
|
500×3500 |
0.025×0.015 |
3 |
4.9 |
0.30 |
0.055 |
